- RIAA equalization +/- 1.5 dB, 20Hz to 20kHz
- steel chassis
- i/o connectors: rca, 3.5mm trs stereo
- Input Sensitivity: 42 dB gain 1kHz, 47k Ohms
- Input Capacitance: 120pf
- Sensitivity: 5mV for 635mV output
- Frequency Response: + / – .5 dB 20 Hz – 20 kHz
- Conforms to RIAA Equalization Curve)
- THD .01% @ 1 kHz
- S/N Ratio: >83 dB unweighted
- PWR: 9 – 15 VDC
- Output Impedance: 1K Ohms
- Input Impedance: 50k Ohms
- Size: 3.25 x 2 x 1.5
[ Overview ]

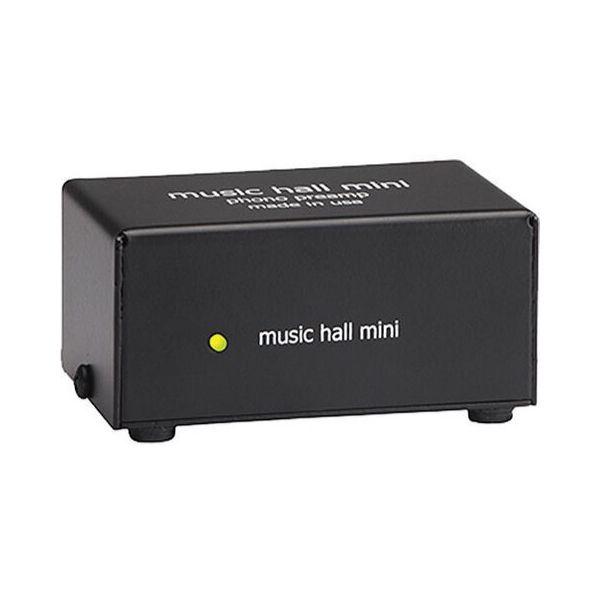

The Music Hall Mini Is A Solid State Moving Magnet Phono Preamp For Use With Moving Magnet And High Output Moving Coil Cartridges.
Features
Availability
- Available in the US only
